Basic Solid Modelling

ZW3D Lite provides all basic 3D solid modelling features you will ever need for simple product design refer to list opposite. ZW3D can directly read and edit model data from CATIA®, NX®, Creo®, Inventor® and Solidworks®, STEP, STL, IGES, Parasolid®, DWG, DXF and SAT.

ZW3D can also export directly to all  standard neutral file formats as well as to many major CAD systems.

Standard Features

Converter for IGES, Parasolid®, STEP, DWG/DXF, VDA, STL

Open, Save & Directly Edit: CATIA®, NX®, SolidWorks®, SolidEdge®, Creo®/ProE® and Inventor®

3D Print Interface

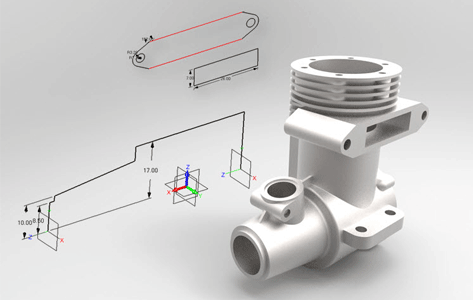

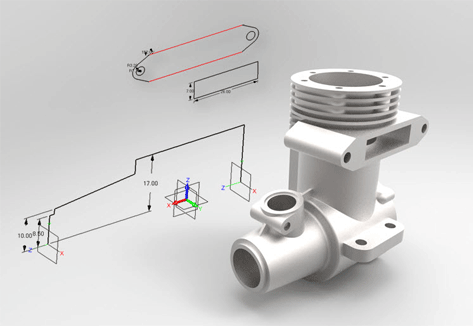

2D & 3D Sketch and Wireframe

Parametric Solid-Surface Hybrid Modeling  – Limited

Surface Modeling – Limited

Assembly Design – Limited

Data Inquire & Geometric Healing

Direct Edit – Limited

2D drawings

PMI

Standard Parts Library

TraceParts Online Parts Library

Add on Applications – Extra Cost

ZW Teammate
